Entry #4

A MINIMA

drawings - stats - boat - budget - explanation - bio

Drawings:

Stats:

Dimensions

Overall length : 3,94 m
Overall Beam : 1.86 m
Overall Height : 1.01 m
Weight (approximate) : 400 Kg

Hydrostatics

Volume Displacement = 0.41 tonne (1 tonne = 1000 Kilograms)
Centre of Buoyancy = -1.11, 2.44, 0
Wetted Surface Area = 5.78 m2
Waterline Length = 3.089
Maximum Waterline Beam = 1.86
Water Plane Area = 5.31 m2
Centre of Floatation = 3.91, 2.48,0

Boat:

When I first read the subject of the contest proposed by Duckworks Magazine, I asked myself where I could find information about the journey imagined, and while searching all over the web, found wonderful rivers and landscapes.

Although I never went in this area of the world, It made me strongly think of some areas of two rivers of my country (I’m french.. Nobody’s perfect..), the Saone and the Rhone, so I designed this boat as if I was to do this journey from the mists of Jura Mountains to the shores of Mediterranean sea, in St Louis du Rhone. Conditions seemed to me to be quite the same, and requirements for the journey as well.

I imagined ‘A Minima’ to be a combination of a sailing boat, a powerboat, and a camper, keeping in mind she would have to be ported outside of the water sometimes.

For a short journey, I imagined she could be quite short (4 meters (±13 ft), allowing two meters berths to sleep in her small cabin, and the rest for a comfortable cockpit.

She has to be light, so very simple shape was required to save on wood weight, no soft and complicated lines, flat and perpendicular panels.

She has to be cheap, so every square meter of wood and glass fabric, every gallon of resin would count.

She had to be carried ashore for short periods, so, assuming a couple were no Hercules, they could not carry her, but the could roll her.. So she would have wheels.

As I wanted her to be gently sailed as well as motor powered, and didn’t want to deal with a heavy and complex centerboard system, I chose to equip her with leeboards, easy to pull up when on motor or ashore.

I wanted the motor to be centered in the axis of the hull, so I gave her twin sword rudders that would be able to be lifted when on motor or rolled ashore.

She would be rolled ashore, so I imagined using two plastic wheelbarrow wheels included in the transom and a solid handle aft to raise her and pull her.

She would be a camper too, so the top of the cabin would be articulated and soft sided, lined with a bimini to cover the cockpit and protect from heavy sun as well as summer sudden rains.

The rig would have to be simple, so I inspired myself of D4 gaff rig, which would be quite sufficient for such a small boat.

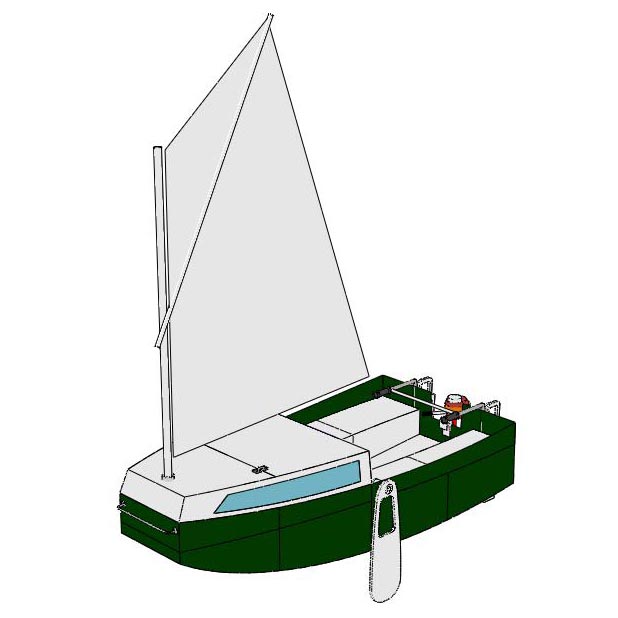

The combination of all these elements gave birth to the drawing I’m presenting to you today:

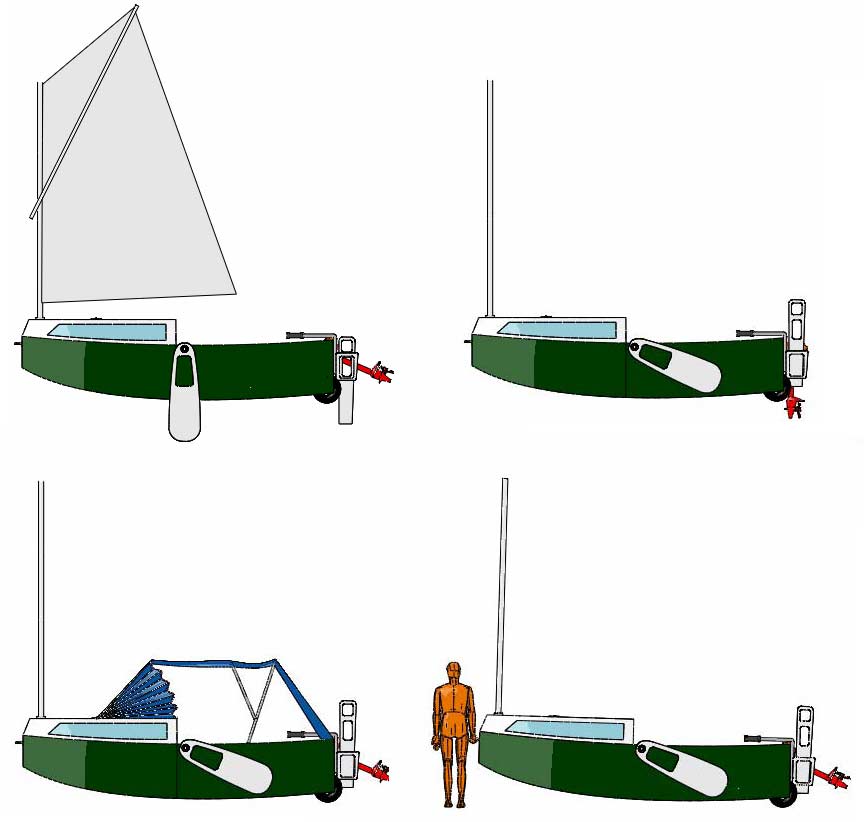

‘A minima’ is 4 meters long, her beam is 1,86 meters. She is 0,70 meters high at the cockpit and 1 meter at the roof top when closed (roof raises to 1.70 meters at it’s highest point when opened). Mast is 3 meters high alone, and the top of the gaff raises to 4 meters. She can be sailed by a beginner, leeboards being able to be lifted on the side in the wind to reduce draft, as well as the rudder in the wind can be, twin attached tillers allowing the sailors to handle them when the boat is heeled.

Of course she is not designed to handle a regatta, and the pilot and her sweetheart will have to play counterweights when over winded, but she is wide enough to prevent a sudden capsizing if carefully handled.

And when the wind falls, leeboards and rudders will be lifted out of the water and a 6 hp short shaft outboard motor (bought for $500 at eBay) will push her strongly enough to face many currents especially since no draft is to be expected from the raised appendixes.

For lunch, or at night, the cabin top will be raised, offering 2 comfortable 2 meters berths to sleep, with a standing height varying from 1 to 1.70 meters. The bimini will protect the cockpit from the sun, and, when raining, one can easily imagine having soft sides attached
to the bimini too.

When needed, the boat will be brought ashore by lifting her nose with the strong handle and rolling on her rear wheels (plastic or rubber wheelbarrow wheels that won’t suffer from drowning and will never need to be inflated nor risk to be punctured)

To achieve this purpose, A minima will be built out of plywood with the stitch and glue method, glassed with epoxy, and can be painted with latex paint (or left unpainted either).

Mast and gaff will be made out of glued assembled and sanded lumber.
Sail will be made in Dacron sailcloth (although it could be made of polytarp to gain on price), soft sides of the cabin and the bimini (whose armature will be made with polyvinyl pipes, cheap and easily bent with steam) will be made of sunbrella (blue is very sun resistant).

Rudders and leeboards will be shaped in two plywood planks and sanded to the right shape.

Most of the chandlery will be found at Duckwork’s online store for an affordable price or at your local ship chandler.

Mechanical parts such as rudder slots and tillers can be made by your local farrier if you are unfamiliar with steelwork (or if you are very skilled you may build them with welded aluminum to gain weight) for a reasonable price.

Fixing (nails, screw, bolts and nuts) will if possible be made of inox and ironmongery will be aluminum to gain weight.

I’m afraid not much more can be said in 1000 words, so I invite You to let your imagination do the rest while watching the drawings.

Budget:

Qty.
Material
Price
Total
1
Old 6HP short shaft ourtoard motor
500.00
500.oo
10
Luan 1/4" Plywood 4*8 sheets
19.95
199.50
12
Natural birch 1/2" plywood 4*8 Sheets
53.95
647.40
4
727-20biaxial tape (west system) 4*20yds
38.15
152.60
2
737-20 biaxial fabric 50"*20yds
369.80
739.60
1
732 glass tape 4"*50yds
64.15
64.15
3
105 C epoxy resin 4,5gal pc
266.40
799.20
1
205 C fast hardener
27.95
27.95
1
Wire/screws
100.00
100.00
1
Lumber for mast
200.00
200.00
15
Sail fabric Sailcloth - White - 3.8 oz. - 36" wide
7.00
105.00
3
tubes for bimini and cabin extension (sq meter)
15.00
45.00
8
Bimini and cabin extension sunbrella fabric (40"x1yd)
11.95
95.60
2
3/4 ply for leeboards and rudders (4*8)
56.95
113.90
1
Aluminium for rudder holders (m2)
100.00
100.00
1
General chandlery
200.00
200.00

Explanation:

I based the budget on US prices found on Internet, as European prices would have made it much more expensive (especially plywood).

As I mentioned before, a 6hp motor in good shape can be quite easily found on eBay for $500, so if the budget allows it at the end of the building, a 10 hp will even be possible to buy for $300 more..

I counted very wide for the number of plywood sheets, as the whole surface used by the boat is around 30 sq. meters (98 sq. feet). 1/2” plywood will be used for the exposed parts of the hull and the frames, transom, etc.., and 1/4” will be for non risky parts like cabin, soles, benches.

As the boat will be completely glassed, I relied on West System epoxy whose quality is well known, but savings can be made on the cost by using cheaper products and/or partially glassing the boat (only the hull for instance.

The mast will be built out of pine lumber glued and sanded in order to be filled with foam and avoid rotting from the inside while consisting in a small buoyancy supplement in case of capsizing.

I insisted on a good quality inox set of screws, bolts and nuts as nothing is worse than seeing a hull rotten from the inside by the rust of it screws. Building a boat is one thing, building a boat that lasts is another.

Chandlery will be bought at it’s best price on internet, so as sailcloth and bimini/soft top fabric.

There is not a lot left to say on this budget, as the table speaks for herself, the total estimated budget reaches $4000, letting a ±$1000 range to build a better boat or enjoy the restaurants and hotels during the journey …

Bio:

Philippe Peltier

I’m a 43 year old guy born in France. I’m head of a software company in the south on the shores of Mediterranean. I’ve been boating and sailing for as long as I can remember with my father and now with my wife and daughter. Boatdesign has always been my passion. I've been designing boats since I was a teenager.

I've been publishing my designs for a few years. For some months now, I have been working on a 17” sailing boat for the French market that I hope will be successful in 2005.
