Here is the latest installment on the cradle pram.

Friday evening the sheer strakes were added. The only clamping needed was at the ends and that was accomplished by one screw to each end.

Saturday morning I took the picture with the Kari, mother to be before I'd even trimmed the planks to length. She hides the pregnancy rather well.

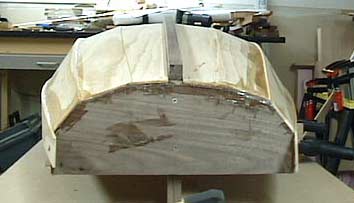

Saturday morning I made the rubrails. They are walnut. 1/4" by 5/8" with a round over on the two outer edges. I made a mistake and left one clamped to a sheer strake while I went to buy some more lumber. Eveidently the epoxy hadn't cured enough from the night before and it pulled the plank away from the bow transom. The epoxy was all stringy like what you'd see after stepping on chewing gum on a sidewalk. The epoxy did manage to cure to a hard state after the plank pulled away. That set me back a little on Saturday but by Sunday morning I was back on track.

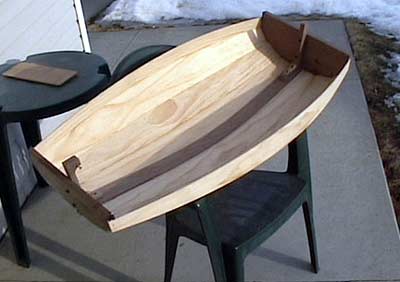

I just couldn't wait to see the inside of the cradle so I unscrewed it from the strongback and took it outside in the light for a little bit. the cradle is very light and surprisingly stiff as it sits in the pictures.

Then I returned the cradle to the strongback to install the rubrails and fill some screw holes.

A friend of mine graciously sent me some bronze holdfast nails which I will use in the ends of the planks as kind of a belt and suspenders thing.

The next Friday evening I milled the ash for the ribs and bent a couple of them to see how they would go. Rather than build a steambox, I thought I'd try just using hot water in the kitchen sink. Since the longest ribs are less than 15 inches, I was able to fit them diagonally in the basin.

Hot water is kind of slow but it gave me time to get things ready. For the test I only used the hottest water I could get from the tap. I changed it once as it cooled. A stainless sink isn't the greatest vessel for keeping hot water hot. After about an hour I was able to bend the two forward most ribs into place.

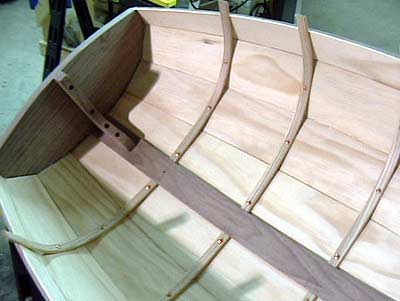

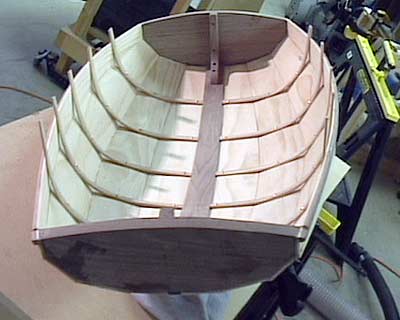

Saturday I did the rest of the ribs. This time I also boiled some water in the electric kettle although I don't know if that really sped things up much. To keep the ribs submerged, I used a kitchen pot filled with water. This worked quite well and the worst part of the whole thing was the long trek from shop to kitchen to shop with the intervening stairs.

I made my rove setting tool from a 1/2" x 3" bolt by drilling a hole in it longer than the longest rivets I have. It works quite well although I think riveting would be less work if it had more mass. I was thinking of setting it in a cylinder of lead and then wrapping the whole thing in tape so I'm not handling the lead.

Riveting was something I was nervous about doing but found its not that hard to do. I can see it would be easier to do if you had a helper even on a little boat like this. It was difficult to hold the boat still, keep the bucking iron in place and mushroom the end of the rivet over the rove.

One thing I didn't anticipate with this design is that the points of contact between the planks and ribs do not occur at the seams as shown in all the books I have that talk about riveting. Instead the contact points happen mid plank so that's where the rivets are. Like the sheer thing, I don't believe this would be good for a full sized boat but I think it will work in in this cradle.

Dave Richards
